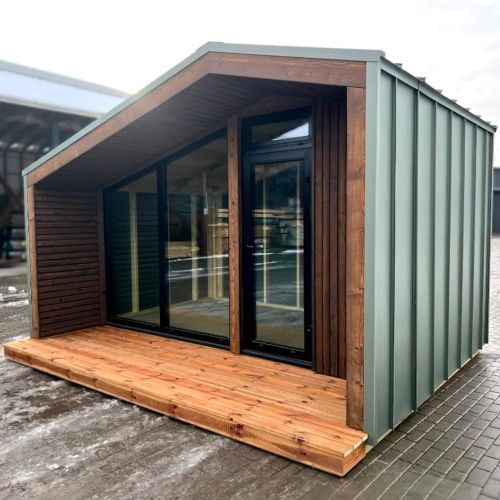

Modular Room M-14
Modular Room M-14 Modular Room M-14 Modular Room M-14

Modular Room M-14

Be the first to review this product

£17,422
calculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-icon

Novuna Finance Calculator

- +
SKU: Modular Room M-14

Want more information about this product?

Quick Specification

  • Ridge Height: 2.97 m
  • Eaves Height: 2.14 m / 1.75 m
  • Depth: 3.5 m
  • Width: 4.3 m
  • Wall Thickness: Cladding + 100mm insulation + 12mm T&G
  • Thickness: 150mm
  • Width: 4.32m
  • Depth: 3.21m
  • Ridge Height: 2.20m
  • Eaves Height: 2.95m

Overview

The model is produced as two separate modules:

  • Living room/Bedrom
  • Front Terrace

The internal area is 8m² and is designed as one space.

STANDARD SPECIFICATION

  • Finished internally (walls, roof, floor) and fully insulated
  • Windows & doors, triple glazed, PVC frame
  • Wiring
  • Profiled classic metal sheets or painted wooden external cladding
  • Terrace

OPTIONAL EXTRAS

  • Air conditioning in main area with heating function
  • Heated floor in main area
  • Internal and external lighting units, sockets & switches

TRANSPORTATION IS NOT INCLUDED WITH THE MODULAR ROOM M-14

Specifications

General

SKU
Modular Room M-14
Shape
Rectangular
Roof Style
Apex
Timber
Slow Grown Scandinavian Spruce
Base construction
Tanalised floor bearers & base frame
Dimensions

Width
4.3 m
Depth
3.5 m
Ridge Height
2.97 m
Eaves Height
2.14 m / 1.75 m
Roof overhang (Front & Side/Back)
1.20 m & 0.0 m
Timber Thickness

Wall Thickness
Cladding + 100mm insulation + 12mm T&G
Floor
20 mm tongue and groove boards
Roof
20 mm tongue and groove boards
Windows & Doors

Glazing
Triple glazed
Opening Windows
1 windows

Plans

pdf
(Size: 1.5 MB)
pdf
(Size: 426.9 KB)
MODULAR ROOM M-14
