Quality small log Cabin
Quality small log Cabin Quality small log Cabin Shed UK Quality small log Cabin Shed UK Quality small log Cabin Shed UK Quality small log Cabin Shed UK Quality small log Cabin Shed UK

Kempton T23D Log Cabin

£2,668
calculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-icon

Novuna Finance Calculator

  • Black + £293
  • Red & Black + £293
  • Green & Black + £293
  • None
  • Yes + £165
  • No
  • Yes + £627
  • No
-- Please Select --
  • -- Please Select --
  • None
  • Yes + £545
- +



Get a full quote for this product from our expert team:



Free Nationwide Delivery

Quick Specification

  • Ridge Height: 2.40 m
  • Eaves Height: 1.95 m
  • Depth: 2.7. m
  • Length: 3.0 m
  • Wall Thickness: 30mm tongue and groove
  • Log Thickness: 30mm
  • Width: 3.05m
  • Depth: 2.75m
  • Ridge Height: 2.40m
  • Eaves Height: 1.95m

Overview

Benefits:

1. High quality cost effective storage shed

2. Small enough for fitting into any garden

3. Door and half to allow access with larger pieces of equipment



Optional Extras:

If there is no price on product page please call 01389734572 or email [email protected] for a price

  • Timber Base Work — A 140mm x 95mm pressure treated base frame is supplied which is supported by 100mm x 100mm recycled plastic posts spaced approximately 1m apart. At each post location holes can be dug and posts are concreted into the ground. The height of the frame is determined by the highest point of the ground. This method allows airflow under the cabin and ensures a solid, level, and stable foundation.
    This can be used as a permanent base, but it won't have a permanent impact on the surrounding environment that a concrete base will.
  • Bitumen Roofing Shingles - Overlapping heavy-duty felt material with an adhesive backing, that is nailed to the roof and finished with heavy-duty felt along the peak and eaves - 10-year guarantee. Available in red & black, green & black, or black.
  • Floor Insulation -  25mm rigid foam insulation placed tightly in between the floor bearers and supported with 2 x 1 treated batons. This will stop cold air from rising underneath the
    floor and will help regulate the temperature throughout the year - U Value of 0.430 W/(m²K)
  • Insulated Roof  - 50mm rigid foam insulation placed internally in between the roofing beams. 20mm tongue and groove roof boards are fixed to the roof beams inside to cover the
    insulation and give a finished look. This will help regulate the temperature better throughout the year - U Value of 0.430 W/(m²K)
  • Extra windows
  • Large Base Frame - A 140mm x 95mm pressure treated base frame, perfect if your base is not flat or level
  • Build Service
  • Door can be solid wood, full glass or 1/2 glass
  • With or without Astragals/window crosses
  • Wired for lights and sockets
  • Solar Panels and batteries for off-grid solution



Description:

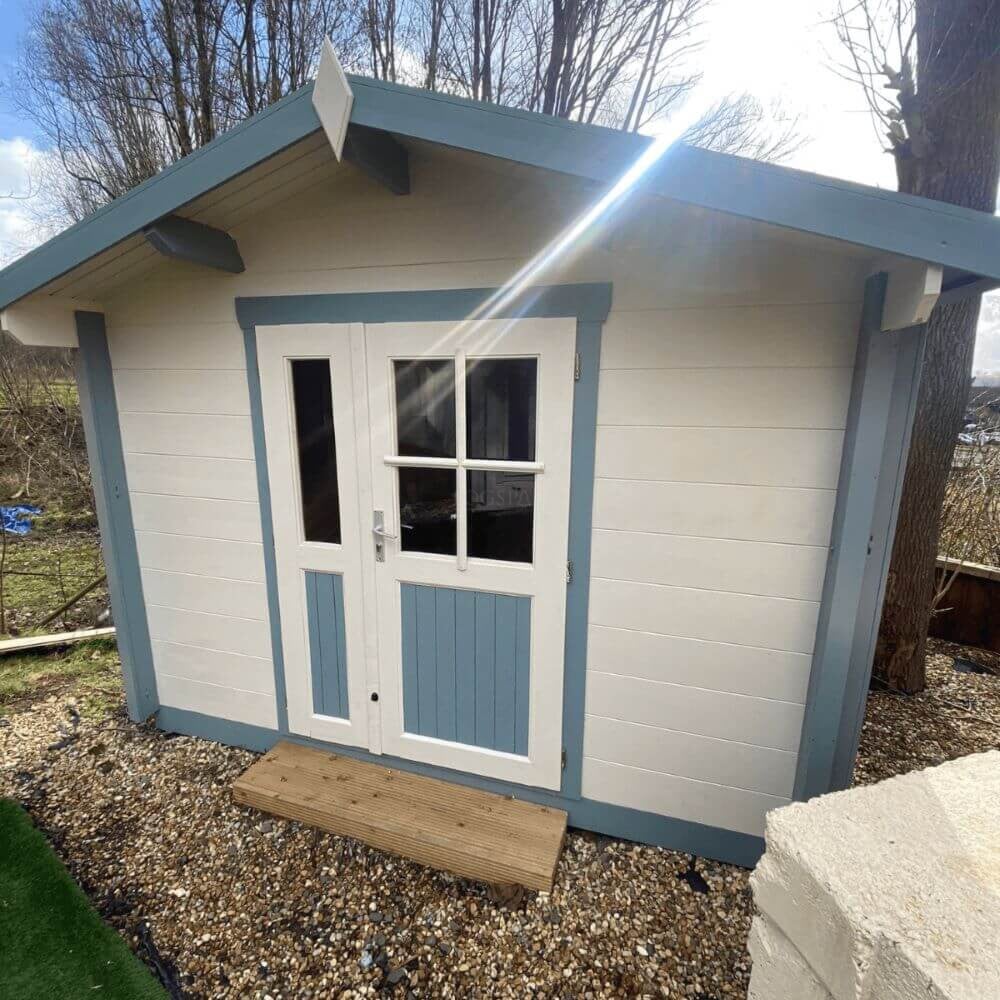

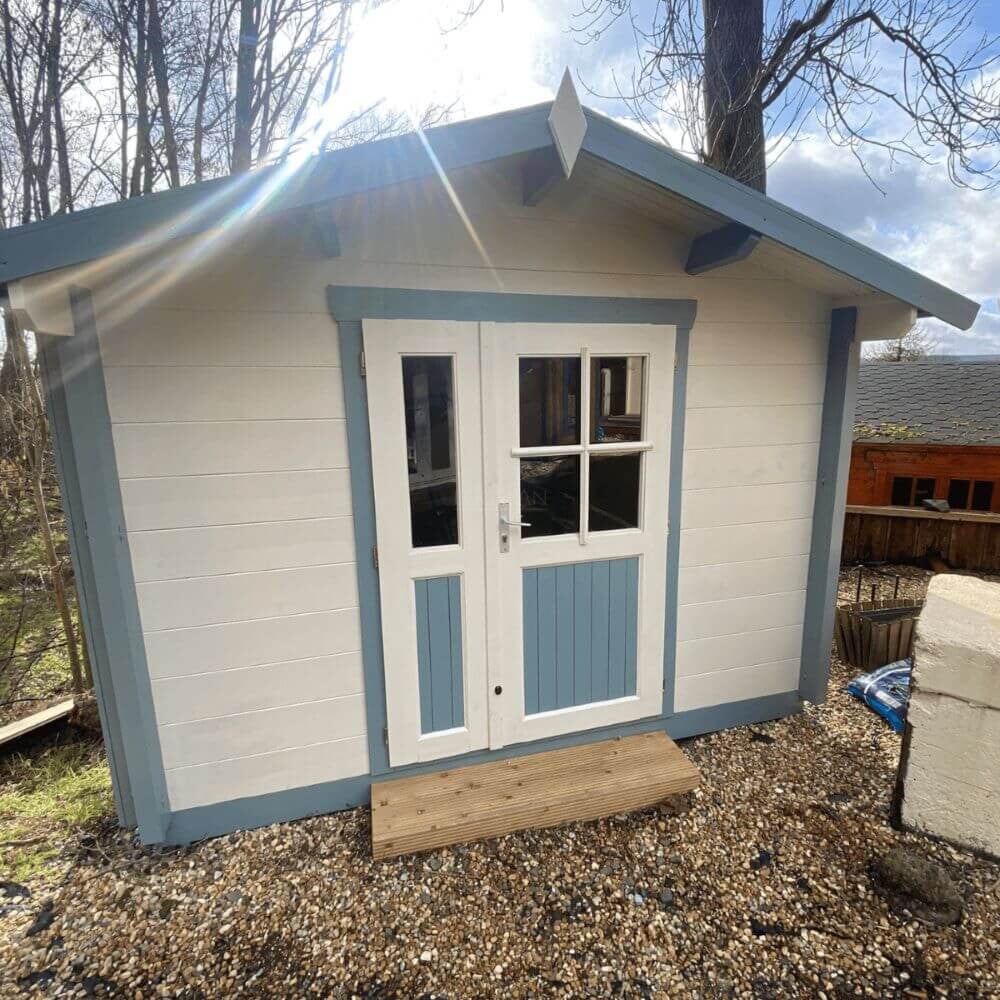

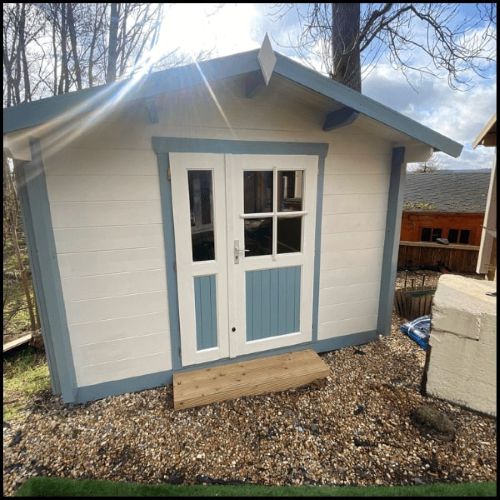

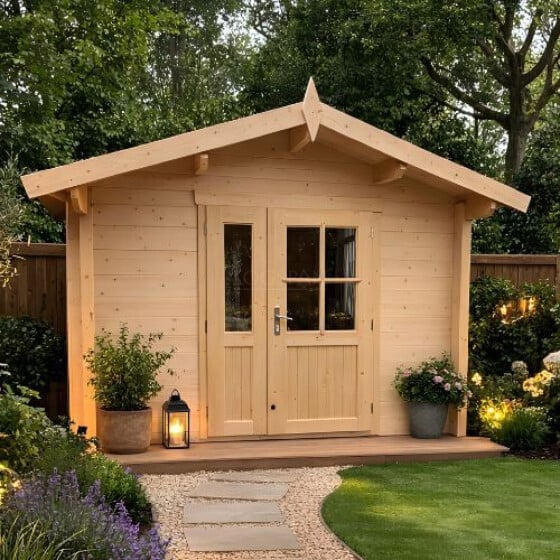

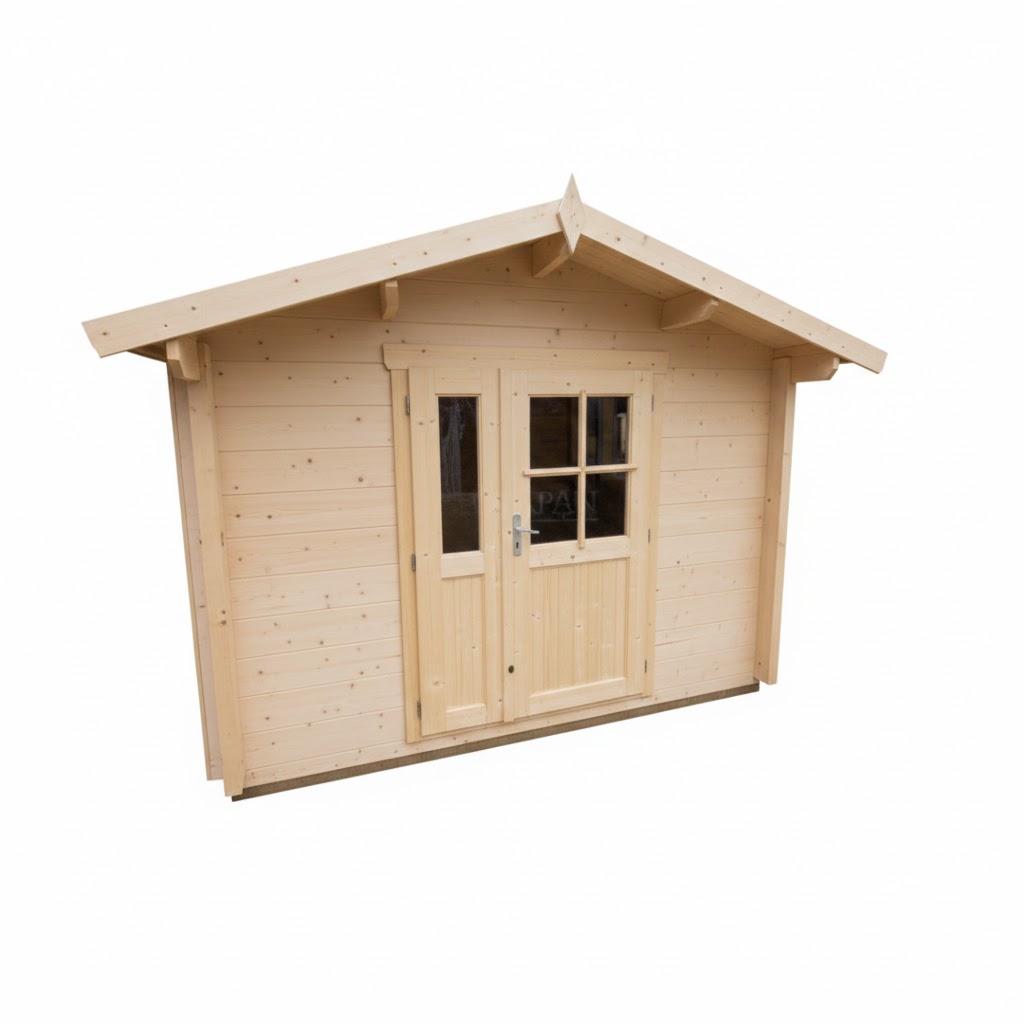

The Kempton Log Cabin is a well proportioned log cabin with a lockable door and a 1/2, this allows the storage of wider items in the cabin.



The 30mm thick interlocking tongue and groove walls are strong and the door comes complete with a lock.



The Kempton is very suitable as a small workroom or larger wooden garden shed. It is manufactured from Scandinavian Spruce timber, a slow grown wood that is both dense and strong.



A side canopy can be added to this cabin, ideal as an outdoor area or to put that picnic table or a shelter for bikes / motorbike.



All cabins MUST be treated as soon as possible. As wood is natural material; it expands, moves and contracts all the time so it is important that the timber is treated properly as soon as possible. For more advice please talk to the sales team.

Specifications

General

SKU
KEMPTON-T23D
Shape
Rectangular
Roof Style
Apex
Timber
Slow grown Scandinavian spruce
Base construction
Tanalised floor bearers & base frame
Dimensions

Width
3.0 m
Depth
2.7. m
Ridge Height
2.40 m
Eaves Height
1.95 m
Roof overhang (Front & Side/Back)
0.30 m & 0.20 m
Timber Thickness

Wall Thickness
30mm tongue and groove
Wall U-Value
2.495 W/(m²K)
Floor
20 mm tongue and groove boards
Roof
20 mm tongue and groove boards
Windows & Doors

Glazing
Single glazed 4mm glass
Exterior Doors
1 door with double action euro lock
Door Sizes
1.35m x 1.85m
What's in the kit

What's in the box

What's included in the package is everything you need to get going:

- A treated base frame on which the whole cabin is built
- All wall logs, each cut to size, length and with the interlocking notches already cut out
- Floor & roof boards cut to length
- Skirting board
- Internal and External Trim
- Wind Boards for the gable ends
- Detailed instructions
- Screws of all lengths and sizes for each section of the job (this is a generic screw pack/you are likely to have some left over)
- Nails for putting down floor - (some like to use a brad gun instead of our nails to make 'secret nailing' in the tongue & groove boards easier)
- Roof covering - you can opt to order with or without the roof covering - This is selected at time of order
- If you have any trouble, we are available on the end of the phone to help out with build or with any queries.
- There is also most likely to be an extra wall board with notches cut out. This is there if there are any damages or missing parts. This extra log can be used to replace the broke or missing part in the unlikely circumstance. If you don't use it, it's a free piece of wood which could be used to make a shelf or a little step for the cabin.

The only thing you will need is your own tools and a flat, stable, level base. Information and advice on base work can be found here. It is also advisable to have at least 2 able bodies to build the cabin.

Plans

pdf
(Size: 87.9 KB)
Kempton T23D Plan
