Overview
Description

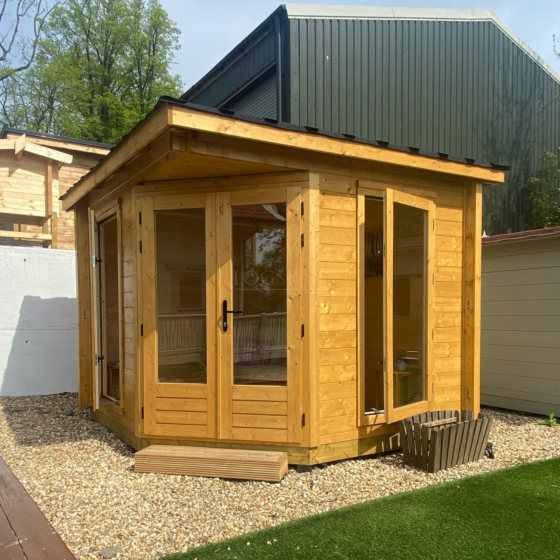

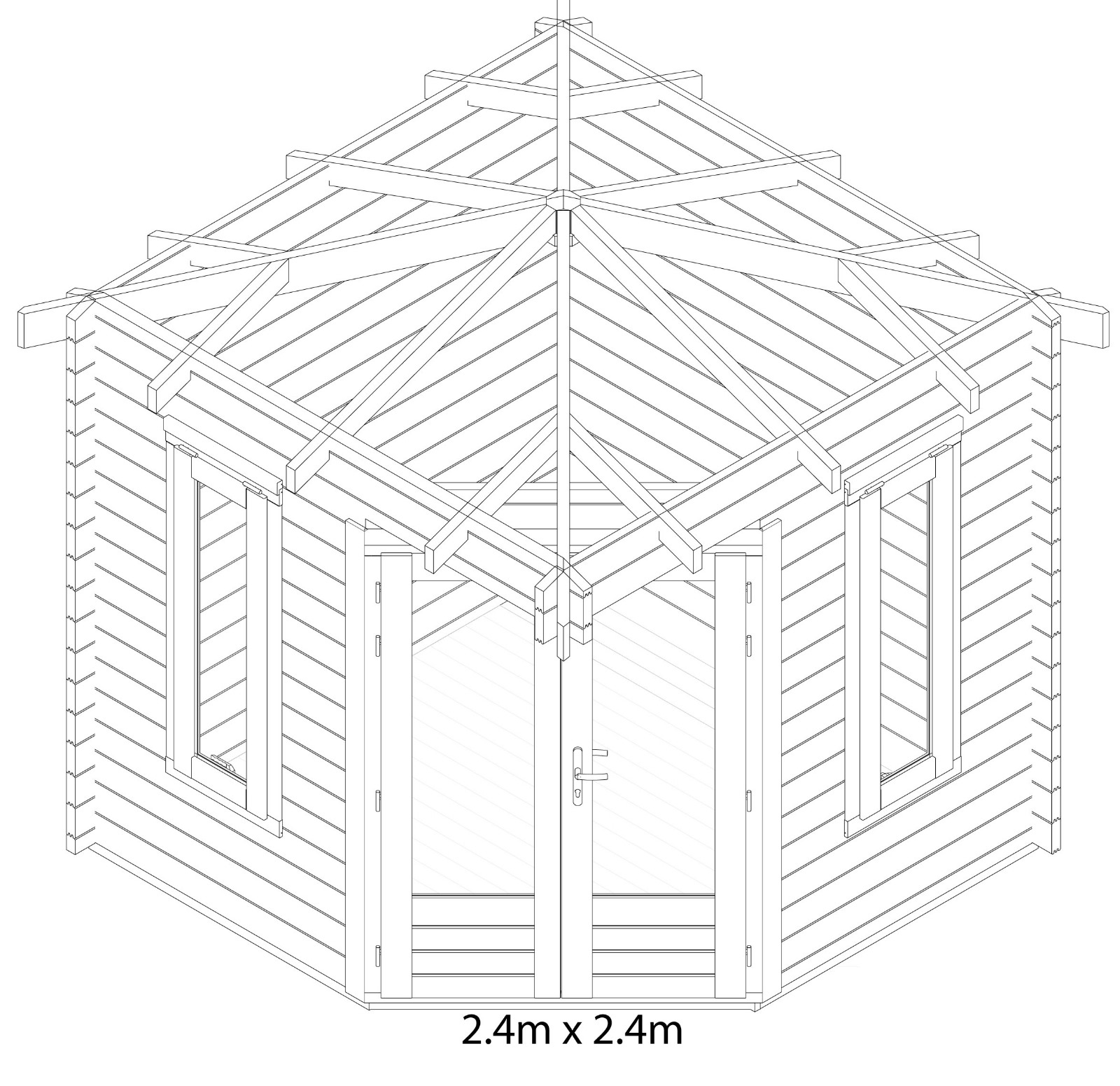

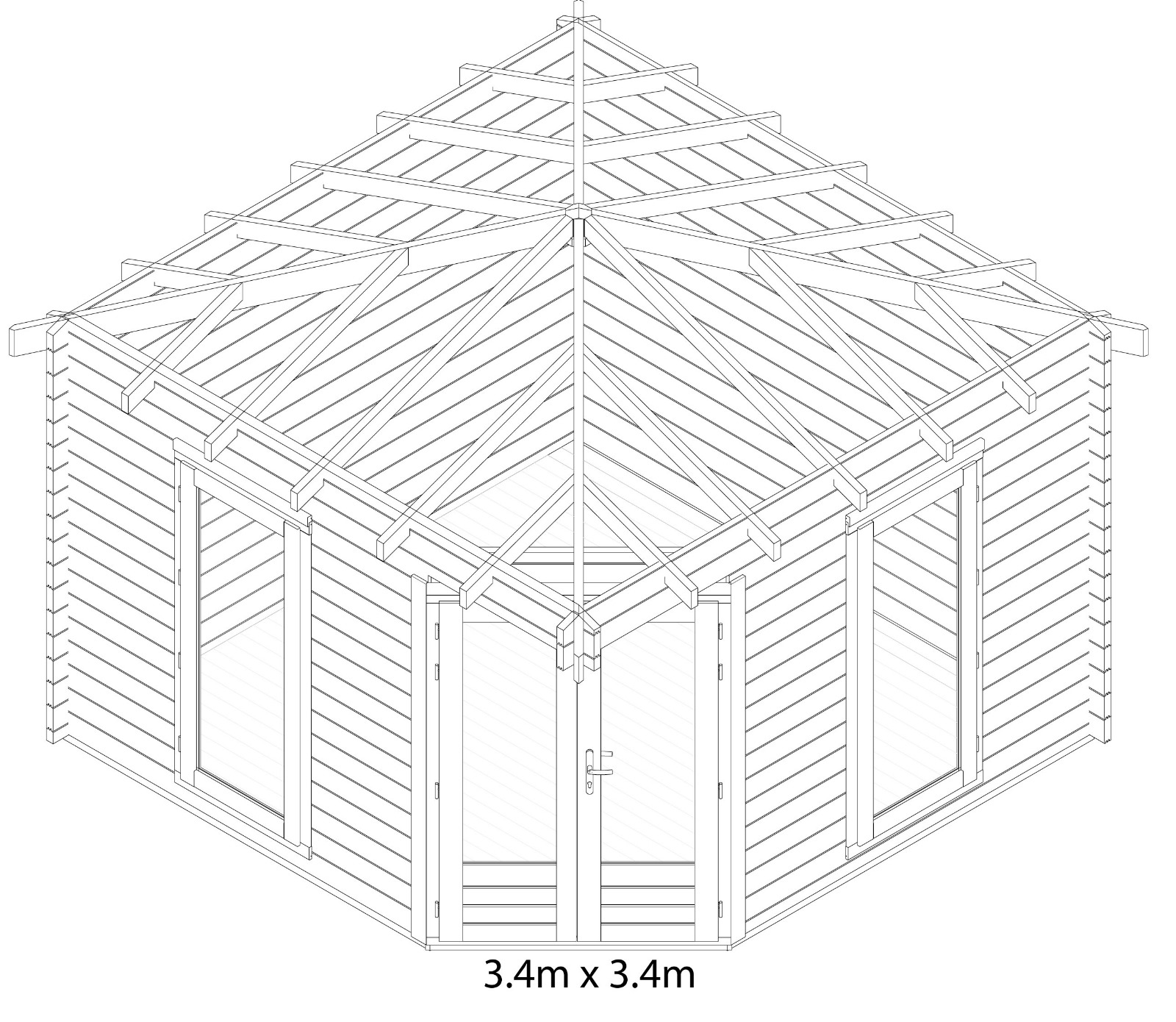

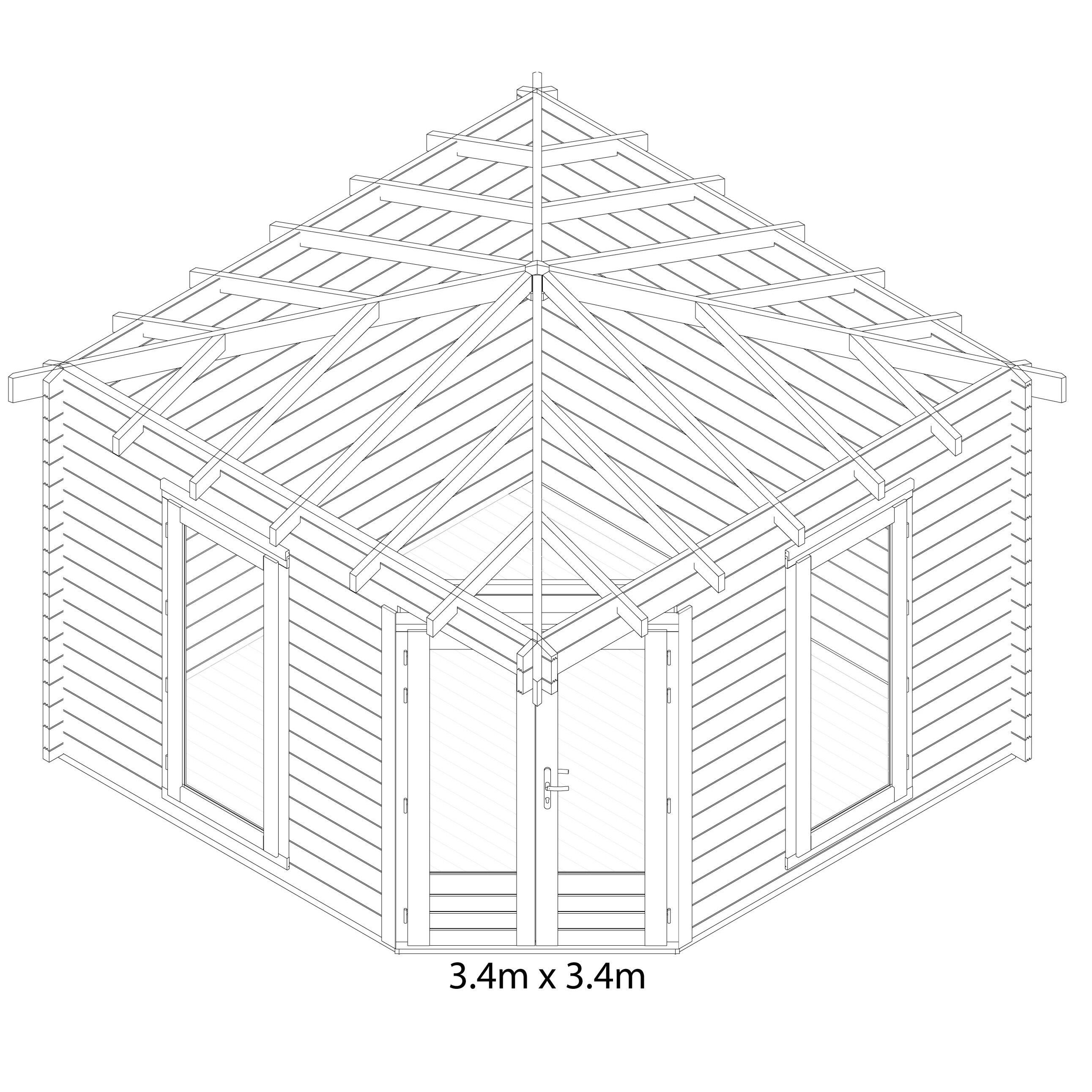

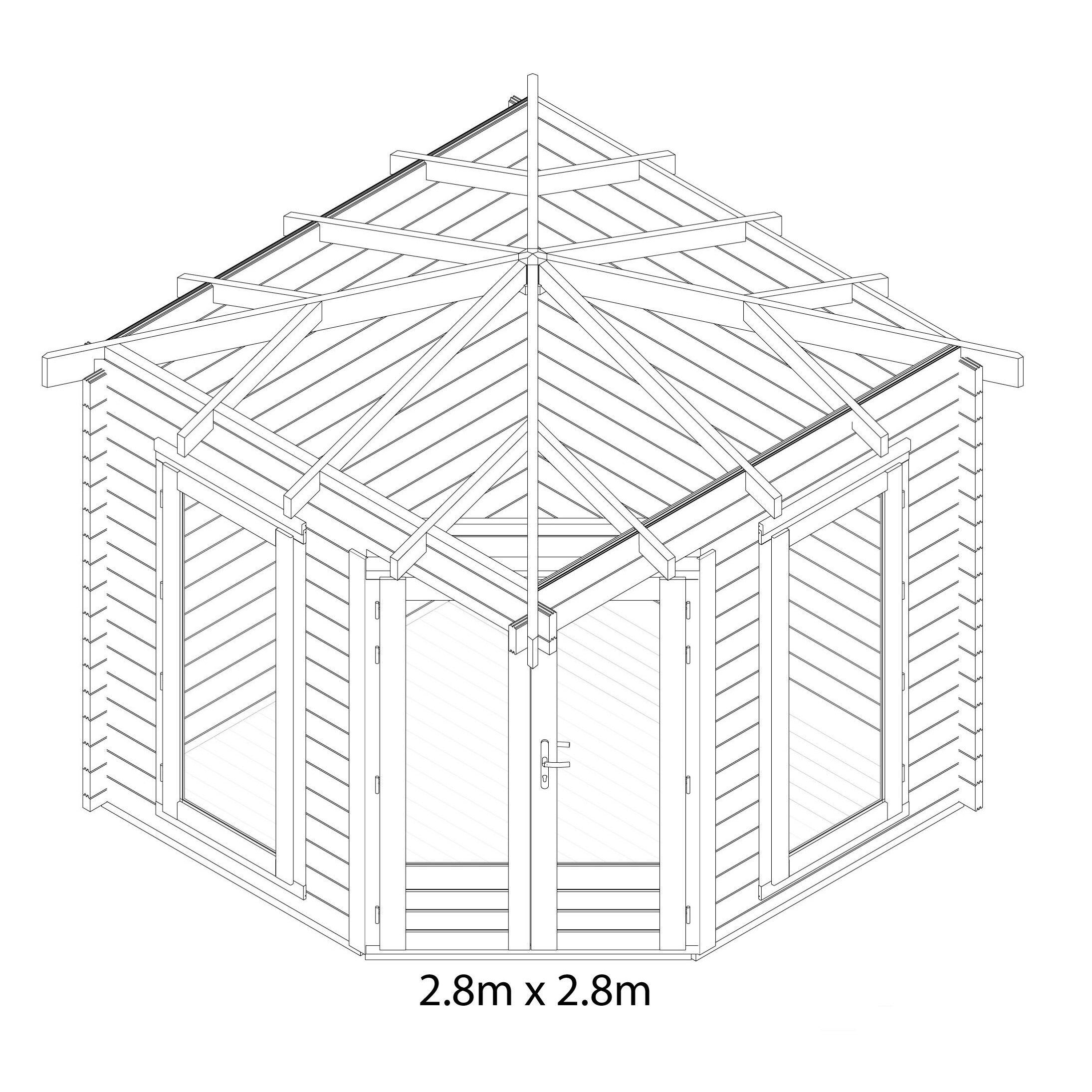

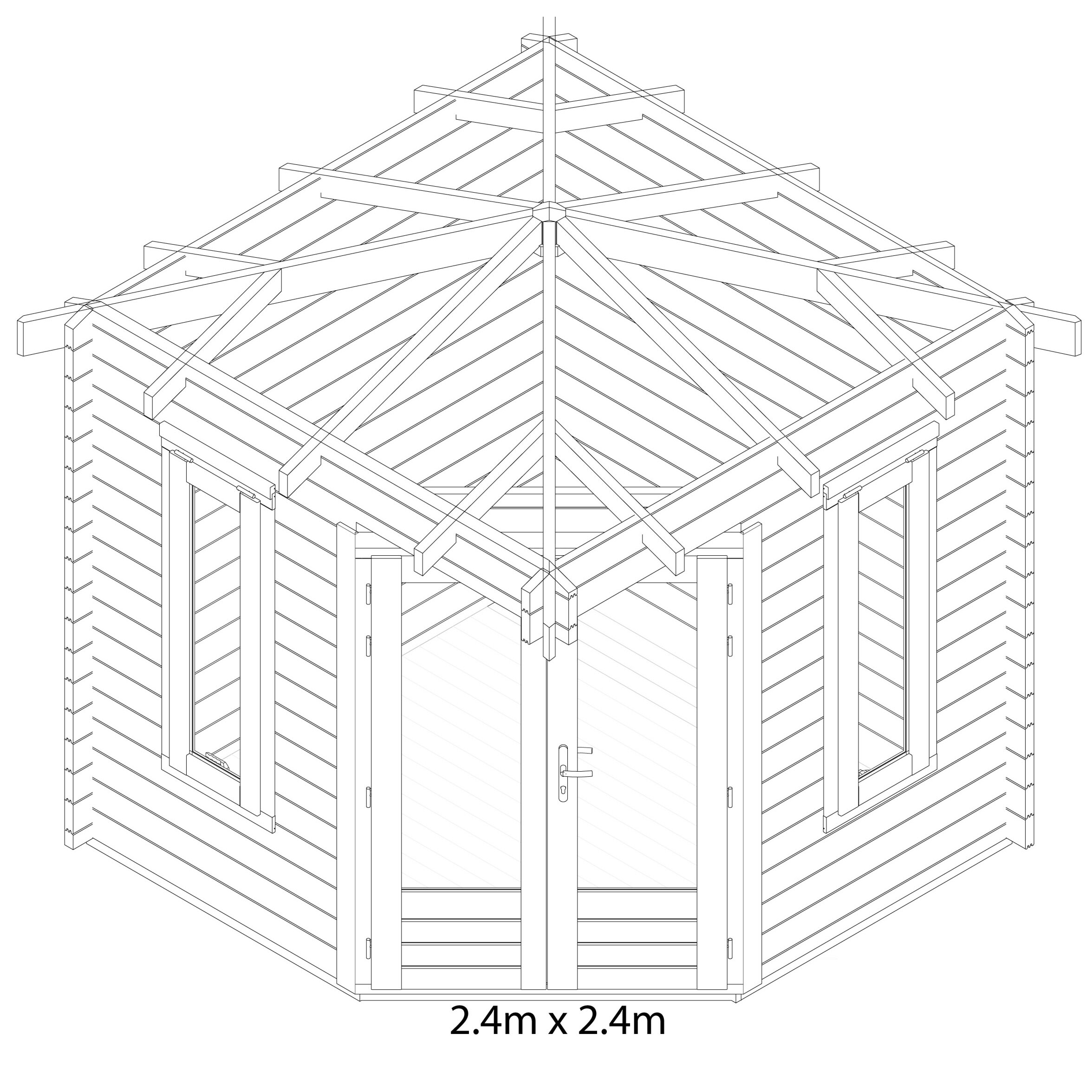

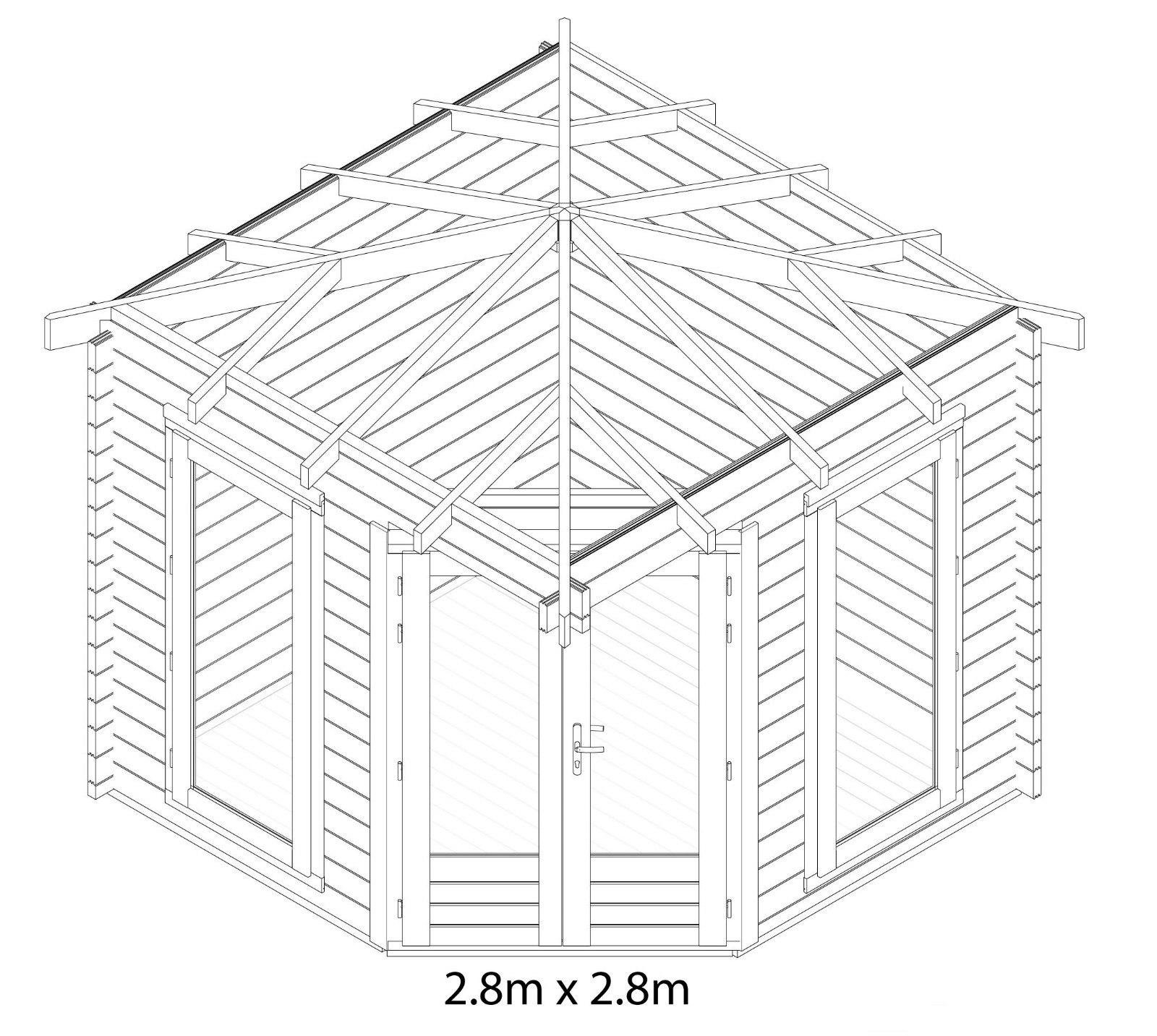

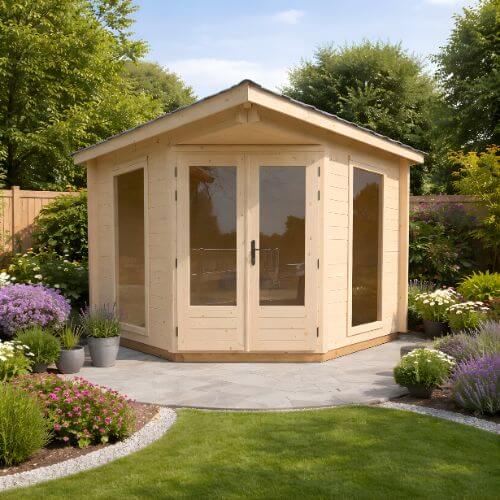

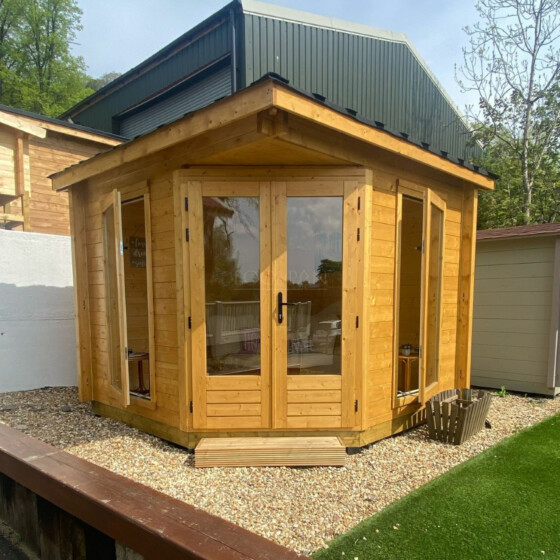

Our 44mm thick Corner Log Cabin is available in four sizes: 2.4m x 2.4m, 2.8m x 2.8m, 3.4m x 3.4m, and 3.6m x 3.6m. Designed with a large overhang, it provides added protection from the weather.
Due to thick walls, the cabin is narutally insulated, and makes the perfect garden room, or relaxtion area at the bottom of any garden.
Like all Logspan cabins, it’s made from sustainably grown Scandinavian spruce. Each cabin includes a small, 70mm, treated wooden base frame to protect the bottom, but the rest of the timber must be treated immediately after assembly to ensure it lasts.
For more advice, feel free to contact our sales team.

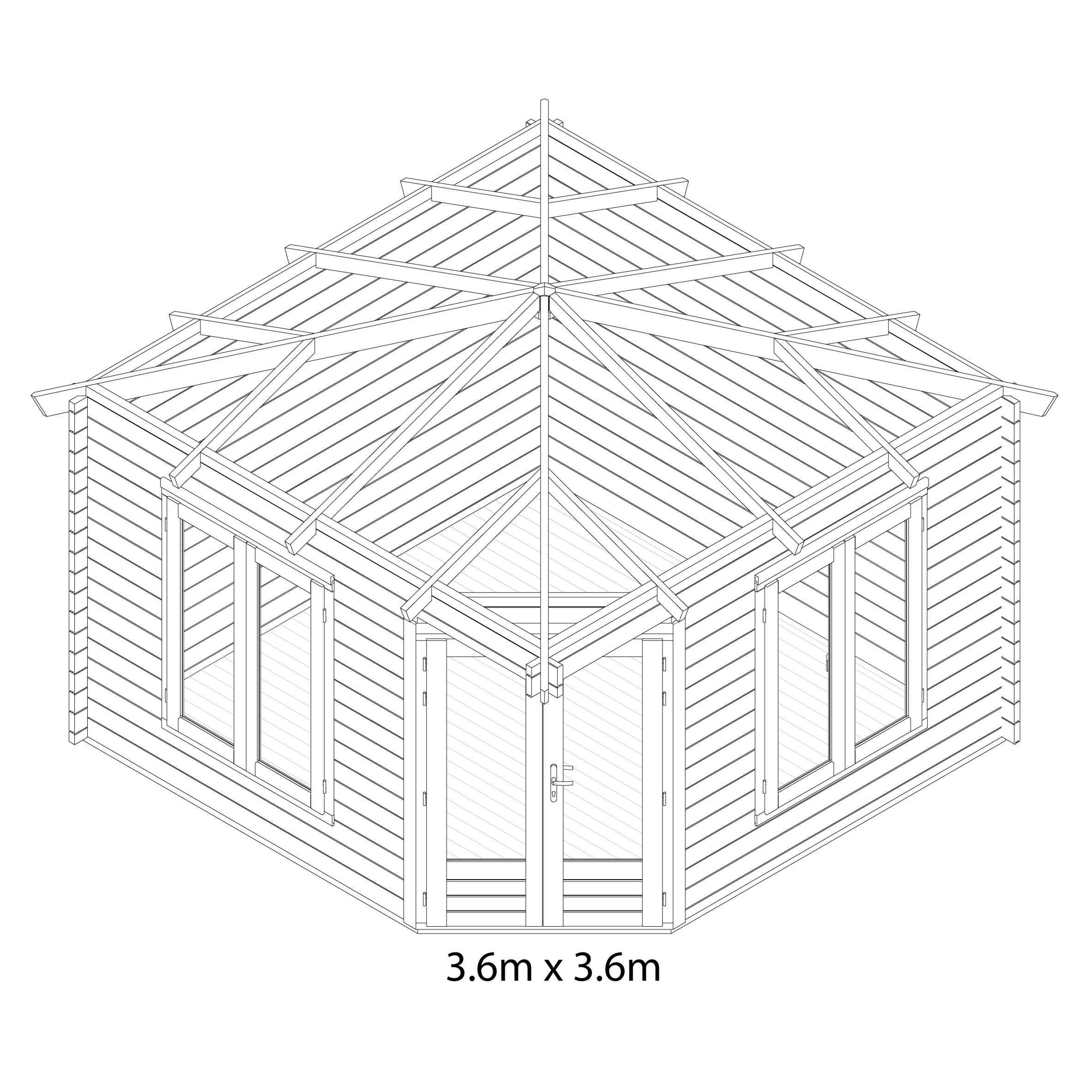

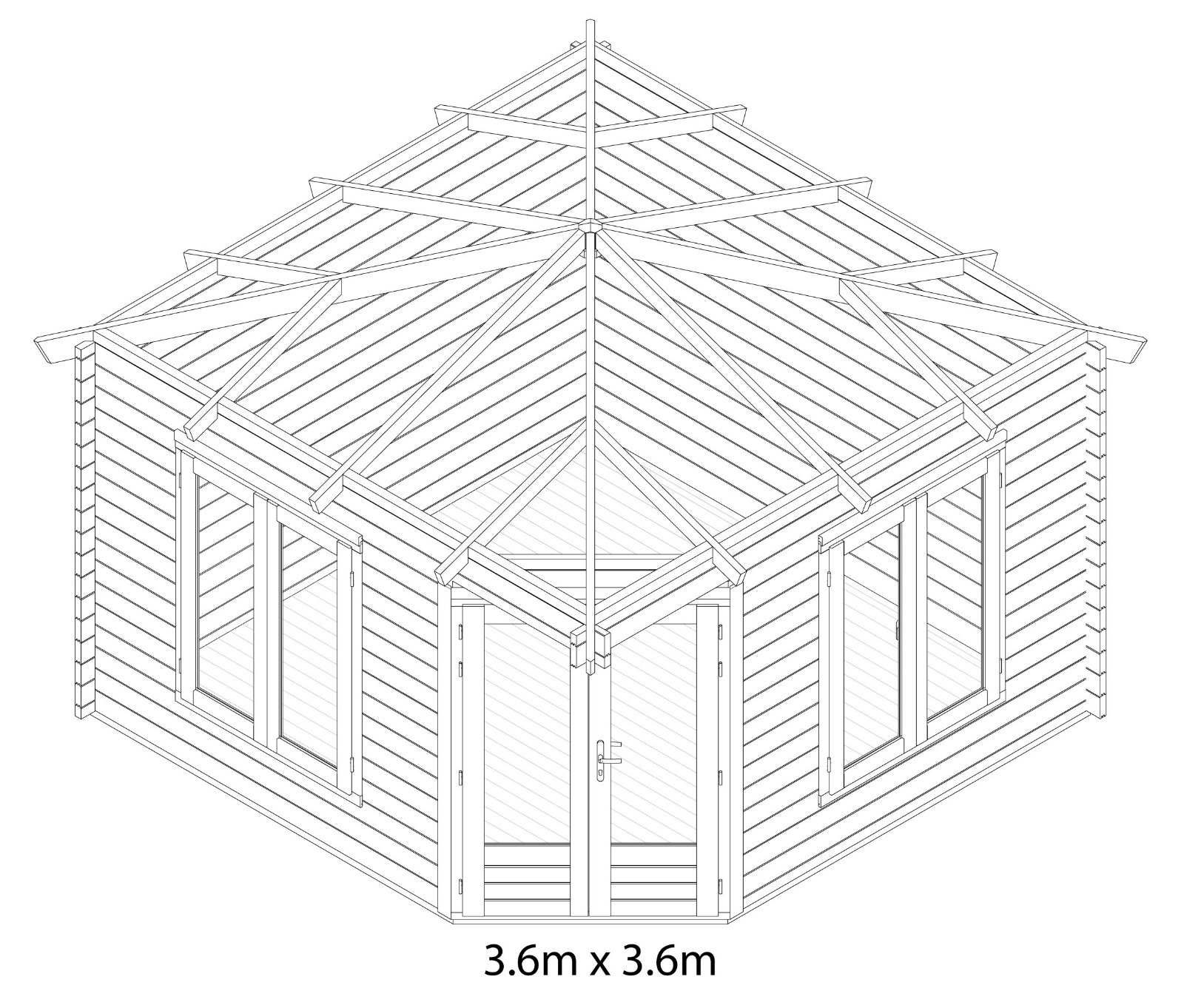

Window Layout
Benefits:
1. Will fit perfecty into any corner of the garden
2. Lots of glass, so is very light inside

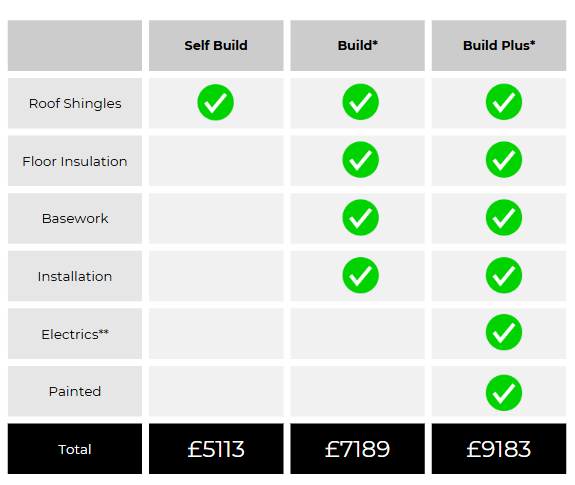

Optional Extras:
If there is no price on product page please call 01389734572 or email [email protected] for a price
- Timber Base Work — A 140mm x 95mm pressure treated base frame is supplied which is supported by 100mm x 100mm recycled plastic posts spaced approximately 1m apart. At each post location holes can be dug and posts are concreted into the ground. The height of the frame is determined by the highest point of the ground. This method allows airflow under the cabin and ensures a solid, level, and stable foundation.
This can be used as a permanent base, but it won't have a permanent impact on the surrounding environment that a concrete base will. - Bitumen Roofing Shingles - Overlapping heavy-duty felt material with an adhesive backing, that is nailed to the roof and finished with heavy-duty felt along the peak and eaves - 10-year guarantee. Available in red & black, green & black, or black.
- Floor Insulation - 25mm rigid foam insulation placed tightly in between the floor bearers and supported with 2 x 1 treated batons. This will stop cold air from rising underneath the
floor and will help regulate the temperature throughout the year - U Value of 0.430 W/(m²K) - Insulated Roof - 50mm rigid foam insulation placed internally in between the roofing beams. 20mm tongue and groove roof boards are fixed to the roof beams inside to cover the
insulation and give a finished look. This will help regulate the temperature better throughout the year - U Value of 0.430 W/(m²K) - Extra windows
- Large Base Frame - A 140mm x 95mm pressure treated base frame, perfect if your base is not flat or level
- Build Secan be solid wood, full glass or 1/2 glassrvice
- Door
- With or without Astragals/window crosses
- Wired for lights and sockets
- Solar Panels and batteries for off-grid solution
Corner Log Cabin Range |
||||||
Cabin Dimensions (m) |
Log Thickness (mm) |
Doors (cm) |
Windows (cm) |
|||
Width |
Depth |
Ridge |
Eaves |
|||
2.80 |
2.80 |
2.73 |
2.01 |
45 |
140/183 |
90/136 |
3.40 |
3.40 |
2.86 |
2.14 |
140/198 |
90/152 |
|
3.60 |
3.60 |
