Goodwood T12 Log Cabin
- Log Thickness: 45mm
- Width: 4.25m
- Depth: 3.05m
- Ridge Height: 2.23m
- Eaves Height: 1.95m
Overview
Information:

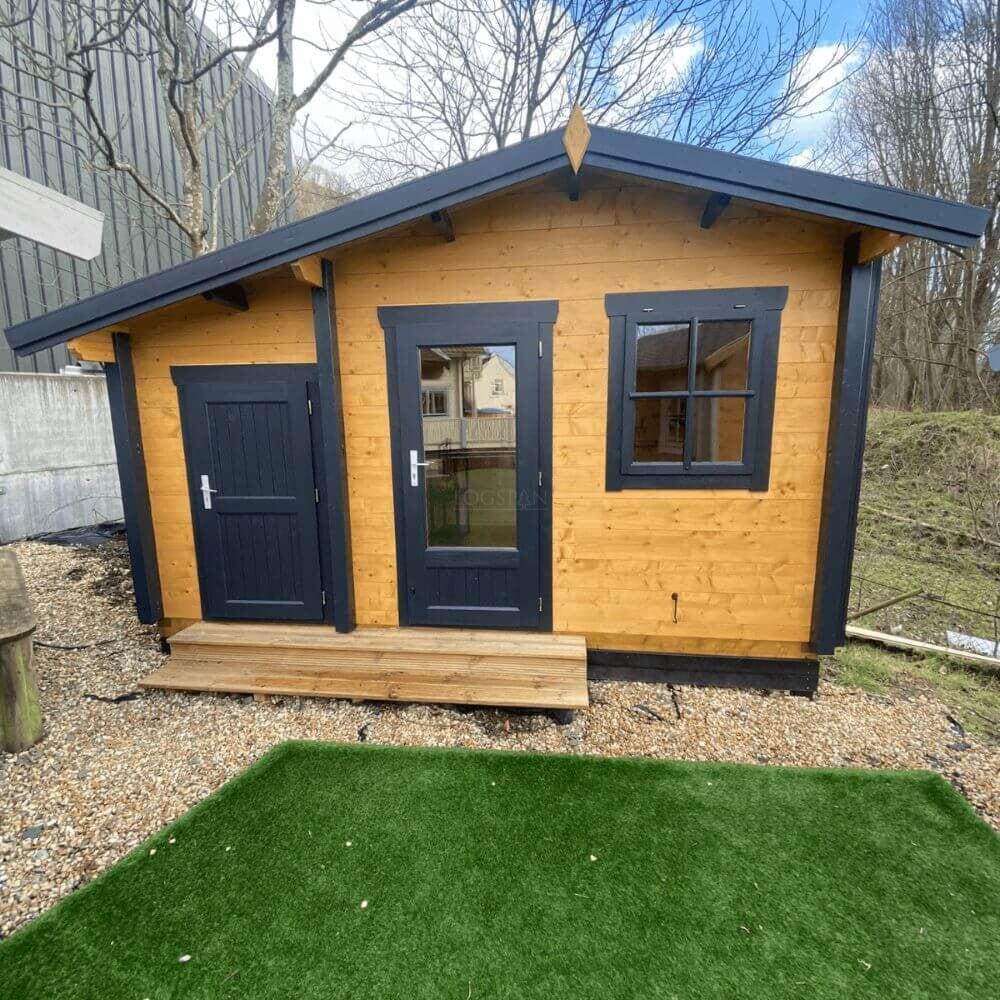

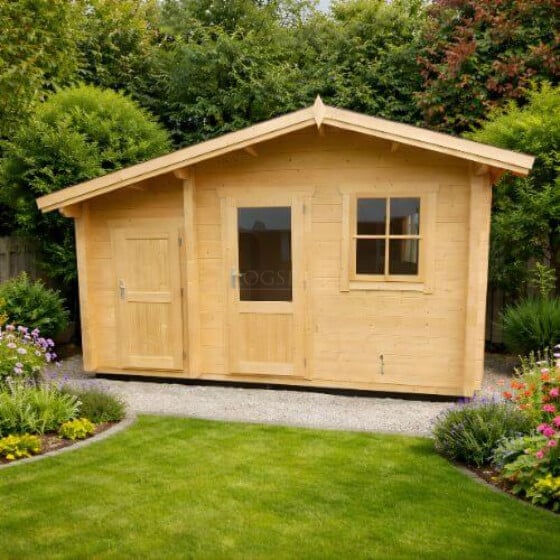

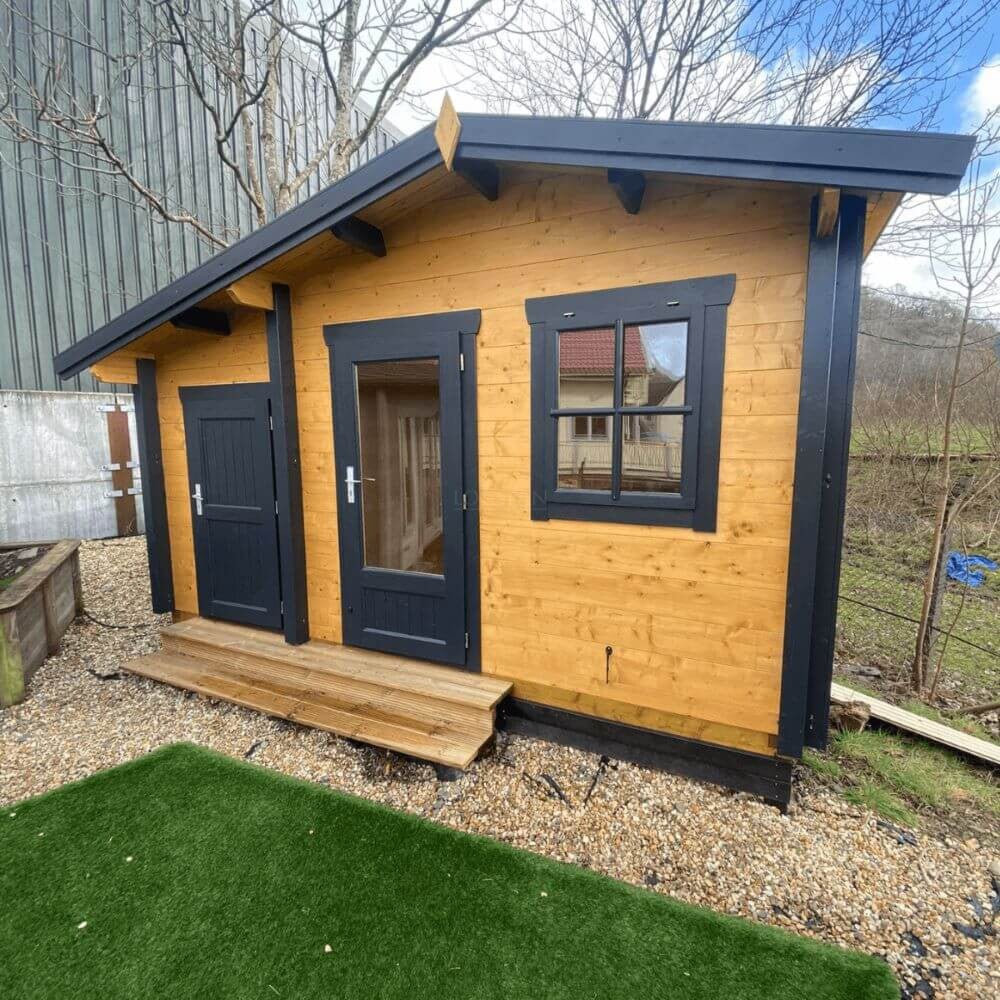

The Goodwood Log Cabin is a log cabin and a half! A pretty garden room and a sturdy storage shed combining the best of both worlds. The timber used is Scandinavian Spruce; the logs are 45mm thick double tongue and groove. The interlocking nature of this cabin makes it a cozy place to sit away from wind and rain. Perfect for the British Winter and Summer!

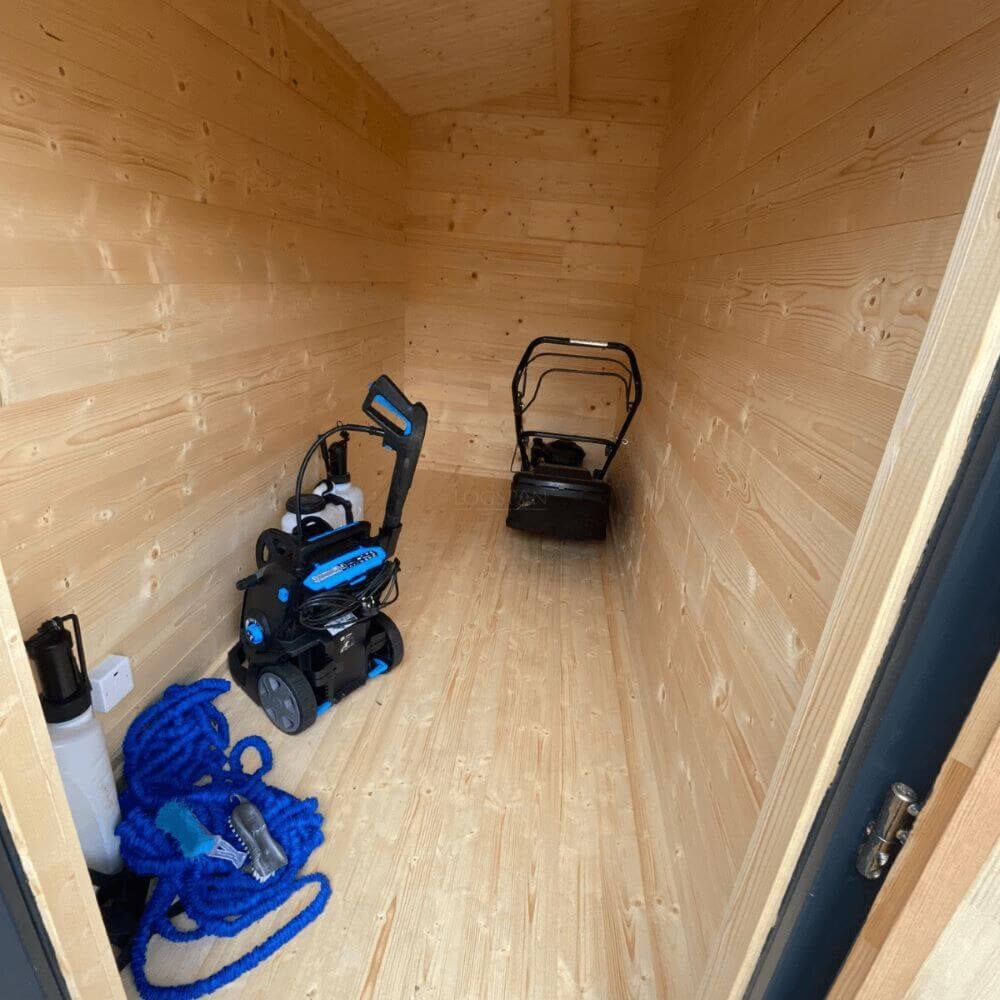

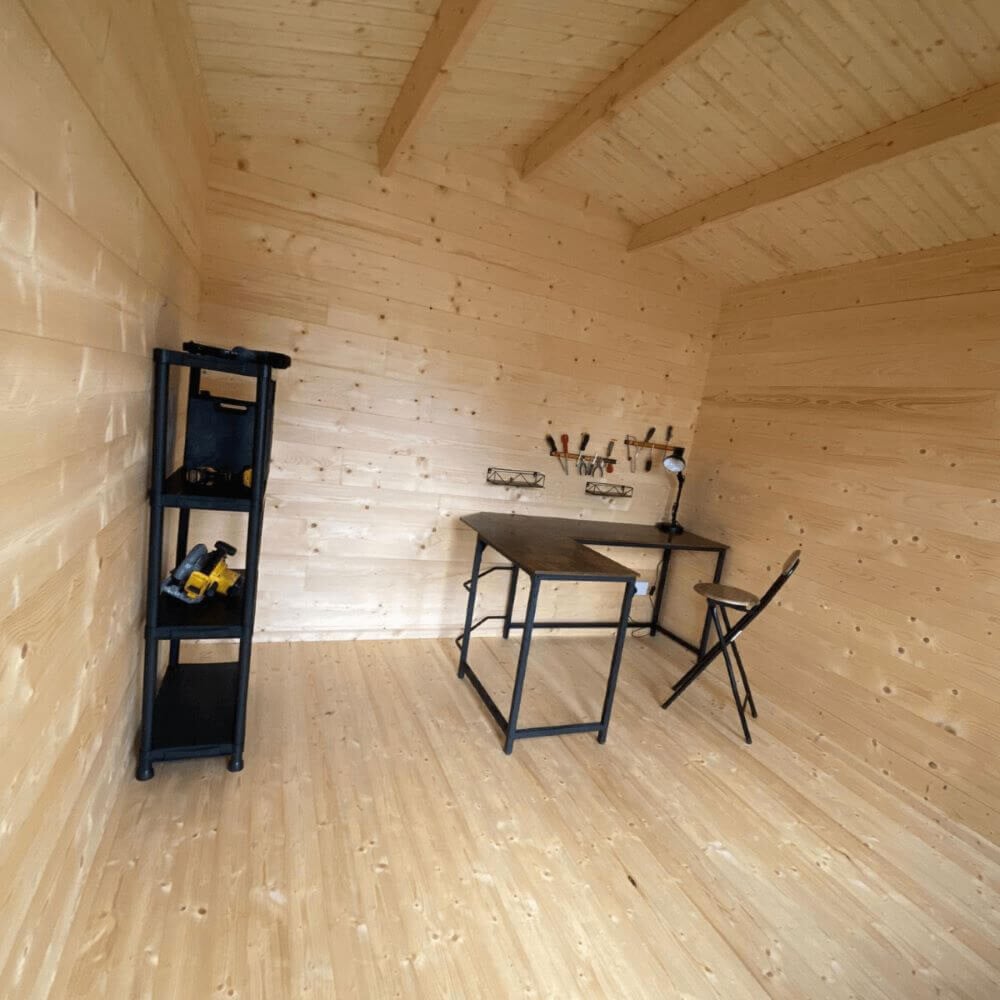

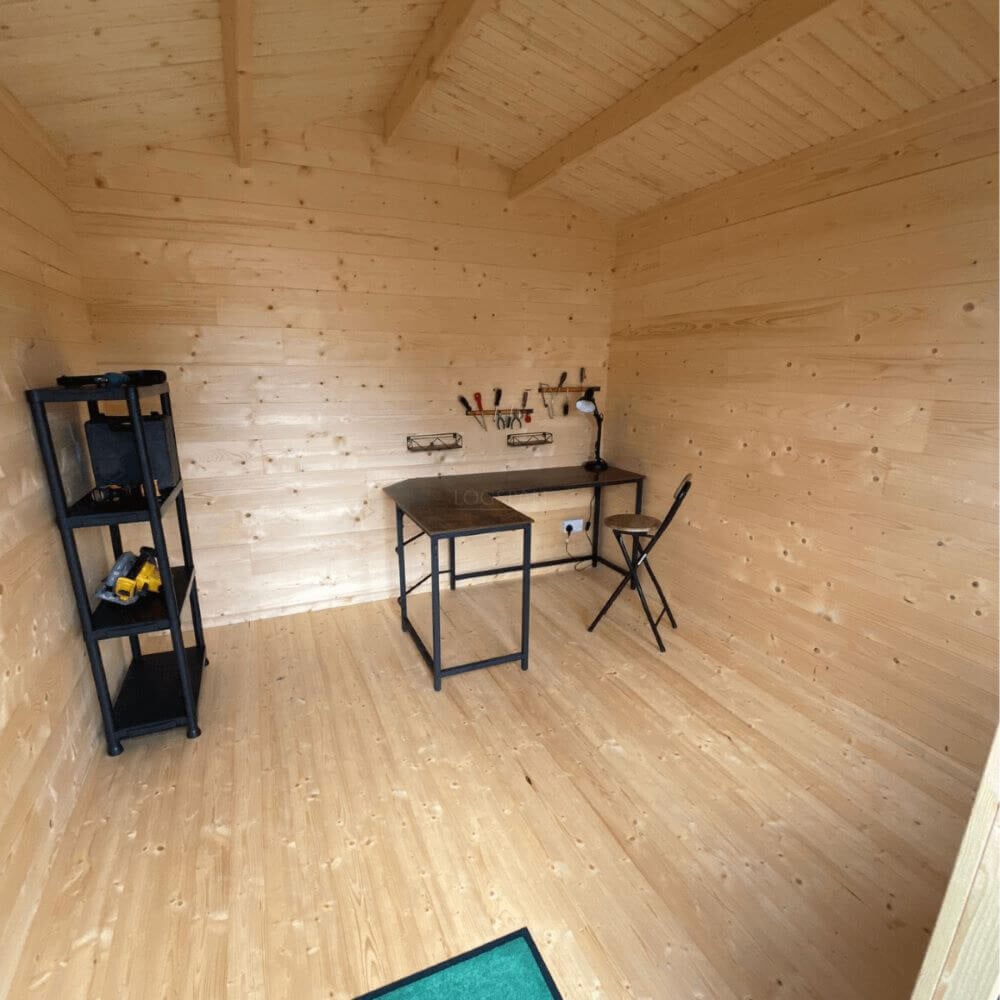

Both doors in the Goodwood garden cabin have quality locks and either door can be solid, half glazed or fully glazed. The size of the log cabin is 2.90m x 3.05m, and the size of the secure storage shed is 1.35m x 3.05m. It is constructed out of 45mm logs milled from Scandinavian Spruce timber, a slow growing wood that has a lot of natural insulation. When space is limited in the garden is limited this compact building will be the perfect solution to your storage and lifestyle needs.
All cabins MUST be treated as soon as possible. As wood is natural material; it expands, moves and contracts all the time so it is important that the timber is treated properly as soon as possible. For more advice please talk to the sales team.
Specification:
Timber | Slow grown Scandinavian spruce |
Wall construction | 45mm tongue & groove interlocking logs |
Wall U-Value | 1.937 W/(m²K) |
Base construction |
Tanalised floor bearers & base frame Larger tanalised floor bearers & base frame available (talk to sales team) |
Base Size |
Width - 4.25m Depth - 3.05m |
Roof overhang |
Front - 0.40m Sides & Back - 0.20m |
Height |
Ridge - 2.23m Eaves - 1.95m |
Glazing | Single glazed 4mm glass |
Windows |
1 opening window Width - 0.80m Height - 0.91m |
Doors |
2 doors with double action euro lock Width - 0.90m / Height - 1.85m Width - 0.85m / Height - 1.60m |
Roof | 20mm tongue and groove boards |
Floor | 20mm tongue and groove boards |
What's included in the pack:
- A treated base frame on which the whole cabin is built
- All wall logs, each cut to size, length and with the interlocking notches already cut out
- Floor & roof boards cut to length
- Skirting board
- Internal and External Trim
- Wind Boards for the gable ends
- Detailed instructions
- Screws of all lengths and sizes for each section of the job (this is a generic screw pack/you are likely to have some left over)
- Nails for putting down floor - (some like to use a brad gun instead of our nails to make 'secret nailing' in the tongue & groove boards easier)
- There is also most likely to be an extra wall board with notches cut out. This is there if there are any damages or missing parts. This extra log can be used to replace the broke or missing part in the unlikely circumstance. If you don't use it, it's a free piece of wood which could be used to make a shelf or a little step for the cabin.
If you have any trouble, we are available on the end of the phone to help out with build or with any queries.
The only thing you will need is your own tools and a flat, stable, level base. Information and advice on base work can be found here.
It is also advisable to have at least 2 able bodies to build the cabin. Estimate 2 days to build this cabin.
Optional Extras for this Log Cabin
If there is no price on product page please call 01389734572 or email [email protected] for a price
- Bitumen Roofing Shingles
- Floor Insulation - we use PIR board - Kingspan or similar - U Value of 0.430 W/(m²K)
- Insulated Roof Panels - we use Rockwool - U Value of 0.669 W/(m²K)
- Extra windows
- Large Base Frame - to be used when cabin is constructed off the ground on decking or post and beam frame
- Build Service
- Door can be solid wood, full glass or 1/2 glass
- With or without Astragals/window crosses
- Wired for lights and sockets
- Solar Panels and batteries for off-grid solution
Specifications
What's included in the package is everything you need to get going:
- A treated base frame on which the whole cabin is built
- All wall logs, each cut to size, length and with the interlocking notches already cut out
- Floor & roof boards cut to length
- Skirting board
- Internal and External Trim
- Wind Boards for the gable ends
- Detailed instructions
- Screws of all lengths and sizes for each section of the job (this is a generic screw pack/you are likely to have some left over)
- Nails for putting down floor - (some like to use a brad gun instead of our nails to make 'secret nailing' in the tongue & groove boards easier)
- Roof covering - you can opt to order with or without the roof covering - This is selected at time of order
- If you have any trouble, we are available on the end of the phone to help out with build or with any queries.
- There is also most likely to be an extra wall board with notches cut out. This is there if there are any damages or missing parts. This extra log can be used to replace the broke or missing part in the unlikely circumstance. If you don't use it, it's a free piece of wood which could be used to make a shelf or a little step for the cabin.
The only thing you will need is your own tools and a flat, stable, level base. Information and advice on base work can be found here. It is also advisable to have at least 2 able bodies to build the cabin.
