Secure your Log Cabin or BBQ Hut with only a £200 deposit.  Contact our friendly sales team today.

log cabin glasgow scotland
log cabin glasgow scotland log cabin glasgow scotland log cabin glasgow scotland log cabin glasgow scotland log cabin glasgow scotland log cabin glasgow scotland log cabin glasgow scotland Ascot T24 Log Cabin

Ascot T24

£10,397
calculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-icon

Novuna Finance Calculator

More Info
More Info
More Info
More Info
More Info
More Info
More Info
More Info
- +

Want more information about this product?

Free Nationwide Delivery

Quick Specification

  • Ridge Height: 2.80 m
  • Eaves Height: 1.95 m
  • Depth: 4.00 m
  • Width: 6.50 m
  • Wall Thickness: 45mm double tongue and groove

Overview

BENEFITS:

1. High quality cost effective Garden Room or Weekend House

2. Spacious living area

3. 45mm walls so built to last

Optional Extras:

If there is no price on product page please call 01389734572 or email [email protected] for a price

  • Timber Base Work — A 140mm x 95mm pressure treated base frame is supplied which is supported by 100mm x 100mm recycled plastic posts spaced approximately 1m apart. At each post location holes can be dug and posts are concreted into the ground. The height of the frame is determined by the highest point of the ground. This method allows airflow under the cabin and ensures a solid, level, and stable foundation.
    This can be used as a permanent base, but it won't have a permanent impact on the surrounding environment that a concrete base will.
  • Bitumen Roofing Shingles - Overlapping heavy-duty felt material with an adhesive backing, that is nailed to the roof and finished with heavy-duty felt along the peak and eaves - 10-year guarantee. Available in red & black, green & black, or black.
  • Floor Insulation -  we use PIR board - Kingspan or similar - U Value of 0.430 W/(m²K)
  • Insulated Roof  - we use Rockwool - U Value of 0.669 W/(m²K)
  • Extra windows
  • Large Base Frame - A 140mm x 95mm pressure treated base frame, perfect if your base is not flat or level
  • Build Service
  • Door can be solid wood, full glass or 1/2 glass
  • With or without Astragals/window crosses
  • Wired for lights and sockets
  • Solar Panels and batteries for off-grid solution




Description:

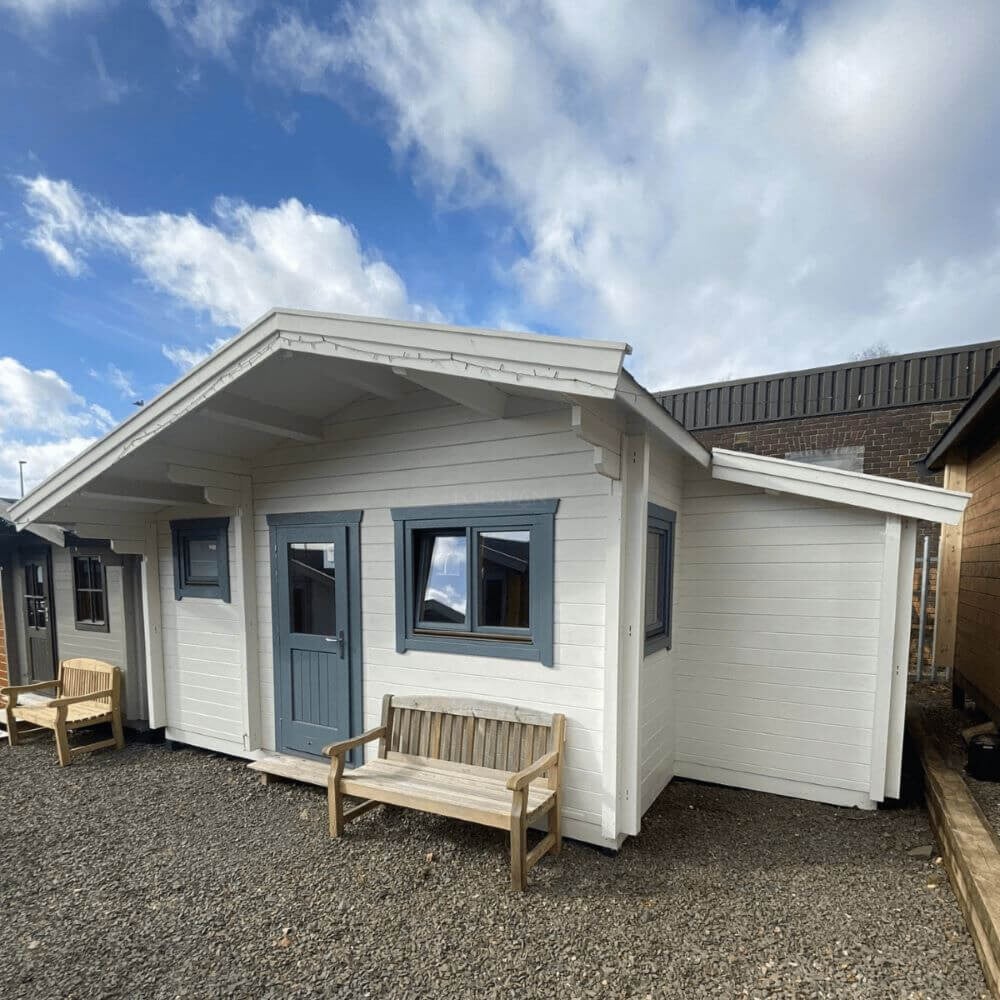

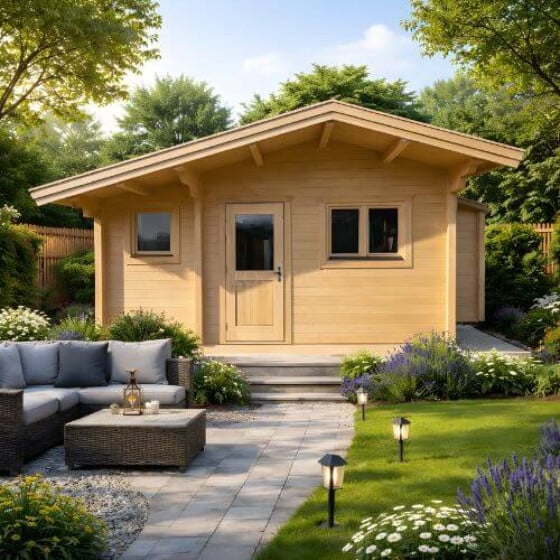

The Ascot T24 Log Cabin is a traditional Swiss style log cabin. Ideal for holiday accomidation or as a quiet place in your garden to go to relax. The exterior door can be solid wood, half glass, or full glass.



All cabins MUST be treated as soon as possible. As wood is natural material; it expands, moves and contracts all the time so it is important that the timber is treated properly as soon as possible. For more advice please talk to the sales team.

Specifications

General

SKU
ascot-t24dg
Shape
Multi Sided
Roof Style
Apex
Timber
Slow grown Scandinavian spruce
Base construction
Tanalised floor bearers & base frame
Dimensions

Width
6.50 m
Depth
4.00 m
Ridge Height
2.80 m
Eaves Height
1.95 m
Roof overhang (Front & Side/Back)
1.00 m & 0.20 m
Timber Thickness

Wall Thickness
45mm double tongue and groove
Wall U-Value
1.937 W/(m²K)
Floor
20mm tongue and groove boards
Roof
20mm tongue and groove boards
Windows & Doors

Glazing
Double glazed 16mm glass
Opening Windows
5 windows
Window Sizes
2 - 1.20 x 0.94m, 1 - 0.70 x 0.94m, 2 - 0.70 x 0.62m
Exterior Doors
1 doors with double action euro lock
Door Sizes
1 - 0.90 x 1.97m - Solid Timber, 1 - 0.70 x 1.97m - Solid Timber

Plans

pdf
(Size: 86.8 KB)
Ascot T24 Plan
