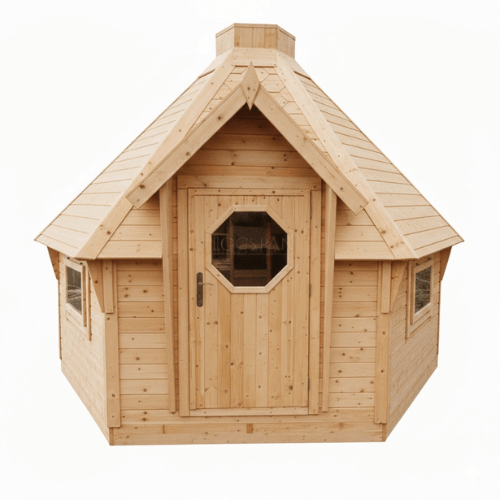

Finman 11m² Sleeper Cabin

Be the first to review this product

£5,540
calculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-iconcalculator-icon

Novuna Finance Calculator

  • Black
  • Red & Black
  • Green & Black
  • None
-- Please Select --
  • -- Please Select --
  • Yes + £288
  • No
-- Please Select --
  • -- Please Select --
  • Yes + £1,314
  • No
-- Please Select --
  • -- Please Select --
  • Insulated Wall + £1,848
  • 45mm
-- Please Select --
  • -- Please Select --
  • None
  • Yes + £1,056
- +

To talk to our expert team about this product, call us today on 01389 500 505 or email us at [email protected]

Free Nationwide Delivery

Quick Specification

  • Ridge Height: 3.27 m
  • Eaves Height: 1.20 m
  • Depth: 3.47 m
  • Length: 4.01 m
  • Wall Thickness: 45mm tongue and groove

Finman 11m² Sleeper Cabin

£5,540

Overview

Included:

  • Bitumen Roofing Shingles - Overlapping heavy-duty felt material with an adhesive backing, that is nailed to the roof and finished with heavy-duty felt along the peak and eaves - 10-year guarantee. Available in red & black, green & black, or black.



Optional Extras:

If there is no price on product page please call 01389734572 or email [email protected] for a price

  • Timber Base Work — A 140mm x 95mm pressure treated base frame is supplied which is supported by 100mm x 100mm recycled plastic posts spaced approximately 1m apart. At each post location we dig holes and concrete the posts into the ground. The height of the frame is determined by the highest point of the ground. This method allows airflow under the cabin and ensures a solid, level, and stable foundation.
    This can be used as a permanent base, but it won't have a permanent impact on the surrounding environment that a concrete base will.
  • Floor Insulation -  we use PIR board - Kingspan or similar - U Value of 0.430 W/(m²K)
  • Insulated Roof Panels - we use Rockwool - U Value of 0.669 W/(m²K)
  • Insulated Wall Panels - we use Rockwool - U Value of 0.669 W/(m²K)
  • Covered Terrace extension
  • Additional side extensions (1.6m, 2.3m and 2.8m long)
  • Extra windows
  • Large Base Frame - A 140mm x 95mm pressure treated base frame
  • Build Service
  • Door can be solid wood, full glass or 1/2 glass
  • With or without Astragals/window crosses
  • Wired for lights and sockets
  • Solar Panels and batteries for off-grid solution
  • Wider accessible door



Description:

You might choose to fit the cabin for couples or single stays - the 4m diameter provides ample room for a double bed (Large or King) which could host a luxury honeymoon suite or a cosy weekend retreat.



The walls are 45mm (nearly 2”) thick and all windows and doors have full double glazing. Like all of our cabins, this Finman Sleeper cabin is manufactured using sustainable, slow grown, scandinavian spruce.



Like all our cabins, these can we are open to whatever ideas you have during the design process as when investing a substantial amount of money, it is important that you get it right first time.



All Finman cabins MUST be treated as soon as possible. As wood is natural material; it expands, moves and contracts all the time so it is important that the timber is treated properly as soon as possible. For more advice please talk to the sales team.

Specifications

General

SKU
Sleeper-11m2
Shape
Multi Sided
Roof Style
Multi Slope
Timber
Slow grown Scandinavian spruce
Base construction
Tanalised floor bearers & base frame
Dimensions

Width
4.01 m
Depth
3.47 m
Ridge Height
3.27 m
Eaves Height
1.20 m
Roof overhang (Front & Side/Back)
0.30 m & 0.20 m
Timber Thickness

Wall Thickness
45mm tongue and groove
Wall U-Value
1.937 W/(m²K)
Floor
20 mm tongue and groove boards
Roof
20 mm tongue and groove boards
Windows & Doors

Glazing
Double glazed 16mm glass
Opening Windows
3 windows
Window Sizes
0.90m x 0.53m
Exterior Doors
1 door with double action euro lock
Door Sizes
0.90m x 1.58m
What's in the kit

What's in the box

What's included in the package is everything you need to get going:

- A treated base frame on which the whole cabin is built
- All components of the cabin are cut to size and ready for install
- Detailed instructions
- Screws of all lengths and sizes for each section of the job
- Nails for putting down floor - (some like to use a brad gun instead of our nails to make 'secret nailing' in the tongue & groove boards easier)
- Roof covering - Roofing Shingles Included - Choice of red, green or black
- If you have any trouble, we are available on the end of the phone to help out with build or with any queries.

The only thing you will need is your own tools and a flat, stable, level base. Information and advice on base work can be found here. It is also advisable to have at least 2 able bodies to build the cabin.

Plans

pdf
(Size: 313.4 KB)
pdf
(Size: 5 MB)
Finman Hut Sleeper Brochure
